Product Code : PR5200 Soft Starter
Brand Name : POWTRAN
Product Description

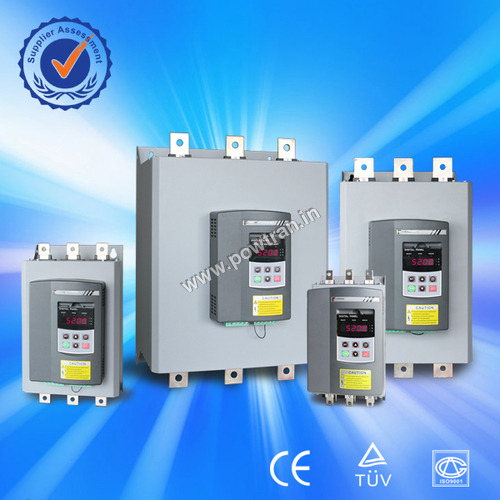

PR5200 AC Motor Soft Starters

Detail introduction:

 PR5200 series motor soft starter is a new product designed by Powtran in order to solve the motor smooth start and stop, It is an important part  of “comprehensive solution for motor control"
It is better cost-effective solutions even motor control in the case without speed regulated.

Technical features:

-5 start modes: including Voltage slope startup mode, current limit startup mode, trip and current limit startup mode, trip and increase voltage startup mode; current slope startup mode and double close-loop startup model

-Stop mode: voltage slop soft stop, free stop

-The main circuit adopts three into six out stages, achieving automatic monitoring

-5 simple PLC function : delay start, interlock control, fault contact output, start time ,stop time

-Different kinds of protection: over current, over load, input output phase lost, over heat, to insure the safety of the equipment and motor

-3 groups of relay output and 1 group of analog output

-Automatic identification of phase sequence and phase sequence protection

-Special compact design

-Product Reliability



Capacity range:

Power range: 5.5~ 400kw

Voltage : 3-phase /380v/460v

 Size:

model

 voltage

power

current

keyboard model

Net weight

shape

installation   Dimension

(V)

(KW)

(A)

(kg)

L/W/H(mm)

a/b/d(mm)

PR5200 5R5G3

380

5.5

11

PR5200

<3.5

288/146/159

270/115/Ф8

PR5200 7R5G3

380

7.5

15

PR5200

PR5200 011G3

380

11

22

PR5200

PR5200 015G3

380

15

30

PR5200

PR5200 018G3

380

18.5

37

PR5200

PR5200 022G3

380

22

44

PR5200

PR5200 030G3

380

30

60

PR5200

PR5200 037G3

380

37

74

PR5200

PR5200 045G3

380

45

90

PR5200

PR5200 055G3

380

55

110

PR5200

PR5200 075G3

380

75

150

PR5200

<20

350/206/210

330/160/Ф9

PR5200 090G3

380

90

180

PR5200

PR5200 115G3

380

115

230

PR5200

PR5200 132G3

380

132

264

PR5200

<23

420/256/250

400/210/Ф9

PR5200 160G3

380

160

320

PR5200

PR5200 185G3

380

185

370

PR5200

PR5200 200G3

380

200

400

PR5200

PR5200 250G3

380

250

500

PR5200

<31

490/360/290

465/290/Ф9

PR5200 280G3

380

280

560

PR5200

PR5200 320G3

380

320

640

PR5200

PR5200 400G3

380

400

800

PR5200
