Vector Frequency Inverter Converter

Vector Frequency Inverter Converter
Vector Frequency Inverter Converter
Send Inquiry
Product Code : PI9130 VFD
Brand Name : POWTRAN
Product Description

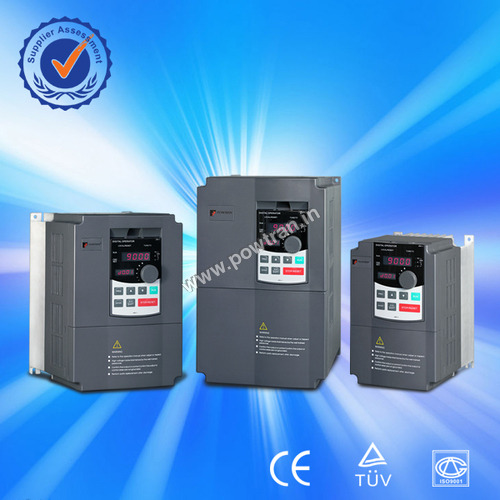

PI9130 Series Vector Frequency Inverter Converter

Power range:0.4-11KW

Maximum frequency 600.0Hz

 Voltage level 1-phase 220V

                     3-phase 220V

                     3-phase 380V/480V/690V

Detail introduction

PI9000 series frequency inverter is a new high-performance frequency inverter ,which is based on motor running and the new theories and technological achievements of control, with servo functions to finish the perfect control of the motor , to provide you with comprehensive solutions in high-end control fields.

Performance profile:

This series frequency inverter is a high-quality, multi-function vector control frequency inverter. By decoupling control of motor magnetic flux current and torque current to achieve rapid response and accurate torque control, high-precision of speed operation and torque control in a wide range.
The new hardware platform, scientific production technology and complete testing equipment to ensure the product is more stable and reliable applications.


Technical Features:

- Central control module based on DSP (32 bits digital signal processor), achieves high-speed and high-performance control

-Control Mode: Sensorless vector control (SVC), Sensor vector control (SVC), V/F Control

-Automatic recognize the parameter of the motor, Intelligent tuning to the best  control mode

-Dead zone compensate function and automatic slip compensate function, 180%  torque output can be achieved below 0.25Hz frequency

-Simple PLC function, at most 15 segments speed control and 8 segments acceleration control can be realized

-One key to shuttle keyboard, swirling free, two-way custom buttons with the demand for expansion

-Multi-language, humanization display menu, highlight OLED simultaneous display 3 groups of state parameters

-Keyboard is hot-pluggable and can restore or copy 4 groups of running parameter programs

-Powerful communication function which can support standard RR485 and Modus, Meanwhile provide remote keyboard control

-Unique EMC design minimizes pollution to the power

-All strengthen the coating can work in various bad environment
